Technical Support FAQminiSwap/U3 - Install Plastic Feet for Proper Cooling
Please do not forget to install the four plastic feet included in the box. The feet are needed to support the proper airflow configuration for keeping the drive cool. Leaving the feet off will restrict airflow which can cause the drive to run warm.
SOLUTION: Installing the included feet on the miniSwap/U3 will provide proper drive cooling while also helping to protect the finish of the miniSwap/U3.
Mac OS X 10.9 (13A603) Does Not Support 2010 17" MacBook Pro ExpressCards
If you have a 2009 or a 2011 MacBook Pro with an ExpressCard slot, all FirmTek ExpressCards will work with Mac OS X Mavericks and the currently posted FirmTek drivers. However, if you have a 17" 2010 MacBook Pro model MacBookPro6,1 with 10.9 installed, no drives mount with any manufactures eSATA card in our tests. This suggests the 10.9 installer may not fully support the 2010 MBP ExpressCard hardware.
SOLUTION: If you have a 17" 2010 MacBook Pro and require ExpressCard slot functionality, please stay with 10.8.x or earlier until this issue is corrected.
Hack For Enabling MacBook Pro 2010 ExpressCard slot with 10.9 (13A603)
The Hack: Replace the IOPCIFamily.kext file found in 10.9 (13A603) Macintosh HD/System/Library/Extensions folder with the same file from a Mountain Lion 10.8.5 extensions folder and then repair disk permissions.
IMPORTANT: You MUST be booted from the 10.9 disk when making this change AND BEFORE restarting the computer you MUST open Disk Utility and push the "Repair Disk Permissions" button and wait while permissions are repaired. You may get a dialog box that states it cannot repair the IOPCIFamily.kext. Push OK and let the repair continue. Next, push the "Repair Disk Permissions" again and let it repair the disk a second time. Now restart. The 2010 ExpressCard slot should now mount drives with Mac OS X 10.9.
NOTE: If you do not repair permissions before restarting you will have to reinstall Mavericks again as the disk will not be bootable. Re-installing 10.9 is a 45 minute task so Don't Forget to repair permissions first. Disclaimer: Make this change at your own Risk. Possible Negative Side Effects Are Unknown. No Guarantees can be made as to the safety of this hack.
Booting from SeriTek/Q6G
The Drive attached to the SeriTek/Q6G will not boot.
SOLUTION: To allow the drive connected to the Q6G to successfully boot, please do the following:
1. Press and hold the "Option" key while restarting the Mac Pro.
2. Select the Q6G attached Boot drive using the left/right arrow keys.
3. Hit the Return key.
If the boot drive connected to the Q6G does not show up, try moving the Q6G to PCIe slot 2 or slot 4 (top slot). If the drive still is not displayed as a boot drive while holding the "option" key on startup, then it may not be properly formatted as a boot drive. Test the drive internally inside the Mac Pro to verify it boots.
SeriTek/6G ExpressCard Not Recognized by OS X
If you insert the SeriTek/6G into a 2009, 2010 or 2011 MacBook Pro 17" notebook the ExpressCard will not be immediately recognized.
SOLUTION: To allow the SeriTek/6G ExpressCard to be recognized by Mac OS X, insert the card into the ExpressCard slot and restart the MacBook Pro. The ExpressCard icon will now show up at the top of the screen.
Mountain Lion 10.8.x Driver Install Error 100030
Some Mountain Lion users have reported receiving an "OSStatus error 100030" while trying to install the FirmTek driver. This is a Mountain Lion GateKeeper error message.
SOLUTION: To allow the FirmTek driver to successfully install, please do the following:
1. Open System Preferences: Security and Privacy: General
2. Unlock the lock to make changes
3. Select "Anywhere" from "Allow applications downloaded from"
4. Now install the FirmTek driver
5. Restart the computer
6. Open System Preferences: Security and Privacy: General
7. Unlock the lock to make changes
8. Change the setting back to "Mac App Store and Identified developers"
SeriTek/2EN2 - Power
You have just received a FirmTek SeriTek/2EN2 and it will not power up. Usually, one of two things will cause this. 1. The SeriTek/2EN2 has no hard disks installed or 2. The hard disks are mounted in the front section of the tray which does not allow the hard disk SATA pins to insert into the rear backplane of the enclosure.

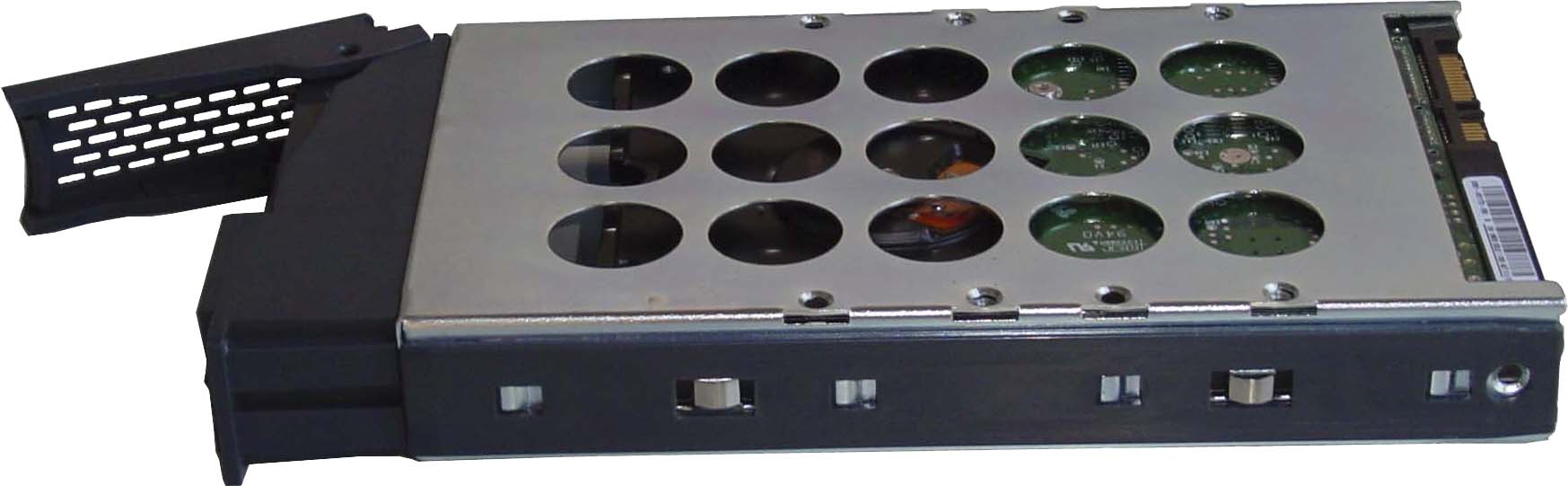

SOLUTION: Install the hard disks in the rear section of the tray so that the SATA pins can be seen sticking out past the rear cut out section of the tray. You can see an example here. This will allow the hard disks to spin up and the power lights will shine on the front of the enclosure. The SeriTek/2EN2 fan is temperature controlled. The fan will turn on when the hard disk reaches approximately 93F.
SeriTek/1S2 - Firmware 5.1.3
The hard disk is attached to the SeriTek/1S2 but it will not work reliably with the computer.
SOLUTION: Verify that firmware 5.1.3 is installed. Go to Apple System Profiler: PCI cards and select the SeriTek/1S2 to view the firmware version installed. If it is not 5.1.3, download the firmware from FirmTek.com. Install the new firmware and UNCHECK "Put the hard disk(s) to sleep when possible" in System Preferences:Energy Saver. Now reconnect the hard disks to the SeriTek/1S2.
Using Multiple FirmTek Controllers
When using multiple FirmTek cards in a single Apple PowerMac G4 or G5 PPC based computer they should all be set at the same firmware version level. If not, it is possible one of the cards may not recognize the hard disks.
SOLUTION: Insert each card in the computer, one at a time to determine what firmware is installed. Open Apple System profiler: PCI Cards and select the FirmTek card on the right side. In the bottom window the ROM version will be listed. Write down the number and then remove the card and insert the next FirmTek card. Individually verify the ROM version for each FirmTek card you wish to use in the same computer. Next, check the FirmTek Firmware & Driver page for available firmware updates. The goal is to set both cards with the same firmware version. Usually, only one card will need to be flashed to match the firmware version of the second card. Firmware updates should be completed with only one card installed in the computer at a time. Once both cards have the same firmware version they can be used together.
SpyderHUB - Mount Hard Disk
An eSATA hard disk is connected to the SpyderHUB and it will not mount on the desktop or show up in Disk Utility.
SOLUTION: Verify that the SpyderHUB is in JBOD mode. The light on the front far right should shine to indicate JBOD mode is selected. The SpyderHUB is designed to be used with a direct connect enclosure like the SeriTek/2EN2. It is not designed to work with hybrid USB/eSATA or USB/eSATA/FireWire enclosures or optical devices or port multiplier enclosures. If you are using a direct connect enclosure and the hard disk still will not mount try moving the FireWire 800 cable to the second FW800 port. The SpyderHUB runs on FireWire bus power. Remove any other FireWire bus powered devices when using the SpydrHUB. It is possible that even a turned off FireWire enclosure connected to the SpyderHUB can exceed the available FireWire bus power limits.
Mac Pro 2008 EFI Firmware Update 1.3
Customers who have installed the Mac Pro 2008 EFI Firmware update 1.3 report that if a SeriTek/2SE2-E controller is installed in slot 2 it is no longer recognized. This issue does NOT apply to the Mac Pro 2009 models.
SOLUTION: Move the SeriTek/2SE2-E card to slot 3 or 4. This allows the SeriTek/2SE2-E to be recognized by a Mac Pro with the EFI firmware update 1.3 installed. It is unclear why the Apple Firmware 1.3 update disables the SeriTek/2SE2-E in slot 2. However, it is a repeatable bug that is displayed when the 1.3 firmware is installed. You can tell if the firmware update has been applied by identifying the BootROM version in Apple System Profiler. A Mac Pro computer with the update will have a BootROM version of MP31.006C.B05. This firmware update appears to be targeted toward correcting a wake from sleep issue. If the computer already wakes from sleep properly you may not want to apply the firmware update. This is another case of "If the computer is not broken, don't fix it".
Optical Devices - Not Supported
FirmTek SATA host adapters are designed to be used with hard disks. They have not been tested or designed to support SATA optical devices.
Oxford 936QS Enclosure - Volumes over 2TB
Oxford 936QS drivers with support for volumes over 2TB are not installed in Mac OS X 10.4.11. With 10.4.11 installed, the first 2TB are seen by the computer but if the rest of the volume is accessed errors will occur. Installing Mac OS X 10.5.6 or higher should correct the issue.
How to change HDD icons
Changing the default FirmTek disk icon in Mac OS X is an easy process.
1. Click the volume, application, folder, or file whose icon you wish to copy.
2. From the File menu, choose Get Info or press Command-I.
3. Click the icon in the upper-left corner of the Get Info window to select it.
4. In the Edit menu, choose Copy or press Command-C.
5. Select the HDD whose icon you wish to replace and choose Get Info.
6. Click the HDD icon in the upper-left corner, press Command-V to replace it.
For more information on this topic please see Mac Basics: About icons in OS X.
Contacting SupportSupport Requests
If you require assistance with a FirmTek product please use the web form below. Include the following information with each support request.
- Macintosh Users-- Please provide a copy of the System Profiler data file:
a) Hold the "Option" key while clicking on the Apple Icon on the upper left side of the screen.
b) Pull down to "System Profiler".
c) Next, go to "File:Save".
d) Zip the resulting .spx file by holding the "Control" key while clicking on the file and select "Compress...".
e) Attach the resulting zip file to the request below.
- Include the model name of the FirmTek product requiring support.
- What computer brand and model is being used?
- Provide the operating system version installed.
- Include the model name of the hard drive enclosure used (if any).
- What hard drive brand(s) and model(s) are connected to the host adapter?
- Please provide details concerning the problem you are experiencing. Thank you!
