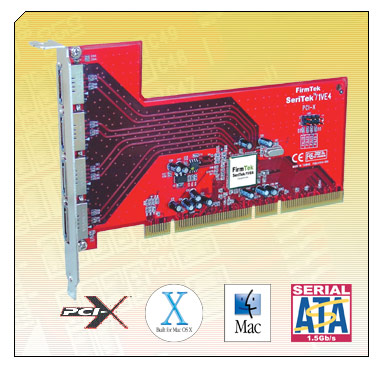

Four Port External Serial ATA
PCI-X Host Adapter

The SeriTek/1eVE4 Host Adapter provides an easy and affordable way for Macintosh users to add inexpensive, high-speed storage. With four external shielded Serial ATA ports, each offering 1.5Gbits/sec performance, the SeriTek/1eVE4 provides the high bandwidth to meet the needs of performance-hungry applications. The SeriTek/1eVE4 is PCI-X compatible, permitting Power Mac G5 users to take advantage of the latest extended PCI technology while maintaining backward compatibility with older Power Macintosh systems.

Key Features and Benefits

  • Four external ports with hot-swap capability; supports hot-swapping of independent and RAID volumes
  • Plug-and-Play ease of use
  • Completely self-contained booting functionality, no driver installation necessary
  • Boosts overall system performance with per-port data transfer rates of up to 150MBytes/sec or 1.5Gbits/sec
  • Supports Power Mac G5 PCI-X (Peripheral Component Interconnect Extended) bus
  • Compatible with all PCI-based Power PC Macintosh computers
  • Supports Mac OS 9, and OS X version 10.1.5 or later
  • Provides performance and protection: Supports native OS X RAID 0/1; OS 9 RAID with 3rd party software
  • User-upgradeable firmware
  • 48-bit LBA support for drive sizes larger than 137GB
  • Perfect for upgrading and expanding legacy and G5 Macintosh computers
  • PCI-X 1.0a compliant 64-bit at 133/100/ 66MHz bus speeds
  • Backward compatible with standard 32/64-bit PCI at 33MHz and 66MHz bus speeds
  • Direct Port Access: Enhanced performance by allowing data transfer to all four drives simultaneously
  • Bus master operation enhances multitasking during disk transfers and increases CPU efficiency: The CPU is free to handle other tasks during data transfers between the PCI Bus and system memory
  • Data protection: Supports OS X RAID, OS 9 Software RAID (third party software), and other storage utilities
  • Reduced setting on storage devices (no master/slave) means easier installation and replacement
  • Ideal for a variety of Power Macintosh applications: Desktop publishing, Audio/Video storage and editing, photo/graphics storage and editing, servers, and gaming.

Package Contents

  • SeriTek/1eVE4 PCI-X Serial ATA controller with four external SATA connectors
  • User's manual

Serial ATA Hard Drive Compatibility

Note: Early Hitachi Serial ATA hard drives are incompatible with the SeriTek/1eVE4 Host Adapter. This is due to a seldom-used Serial ATA feature called SSC, which is enabled on these hard drives. The SeriTek/1eVE4 does not support this feature. Newer model Hitachi Serial ATA hard drives should be compatible with SeriTek/1eVE4.

At this time, the following Hitachi Deskstar hard drives have the SSC feature disabled, and are compatible with the SeriTek/1eVE4 host adapter:

  • Model 7K400 (400GB) – Part Numbers 0A30984 and 0A30985
  • Model 7K250 (250GB) – Part Number 0A30340
  • Model 7K250 (160GB) – Part Number 0A30339
  • Model 7K250 (120GB) – Part Number 0A30338
  • Model 7K250 (80GB) – Part Number 0A30337
Other Serial ATA hard drives from manufacturers such as Maxtor, Seagate, and Western Digital do not have this feature enabled by default and are therefore compatible.
