Specifications

Hardware Requirements
  • Compatible with legacy Mac Pro models with an available PCI-Express slot
  • Compatible with PC's with an available 4x PCI-Express slot
  • Supports Thunderbolt PCIe Expansion Chassis
Operating Systems Supported
  • Mac OS X 10.6.x and later
  • Microsoft Windows 7 and Windows 8
  • Offers additional storage with Apple Bootcamp/Windows 7/8
Bus Type
  • PCI-Express 2.0 2x (Best Performance with PCIe 2.0 4x slot or higher)
  • Backward compatible with PCI-Express 1.0
External eSATA & Internal SATA Connectors
  • Two external Serial ATA (eSATA) connectors

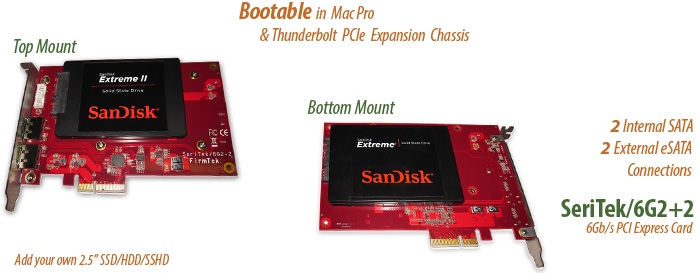

  • Up to two 2.5" SSD or HDD drives can be mounted on the card
Drive Types Supported
  • Serial ATA Hard Drive (HDD)
  • Solid State Drive (SSD)
External Enclosures Supported
  • Direct connect enclosures like the miniSwap/ES, SiI-3726 based port multiplier enclosures like the SeriTek/5PM and Oxford 936 enclosures
Data Transfer Rates
  • Up to 600 MBytes/second or 6.0 Gbits/second burst data transfer rates
Drive Modes Supported
  • Serial ATA
Advanced Data Features
  • SATA 6Gb/s compliant
  • Two high performance internal 2.5" SSD/HDD Mounts on card
  • Two high performance external eSATA ports
  • Bootable - Requires Mac OS X 10.6.8 or later AND a PCIe 2.0 slot
  • PCI-Express Base 2.0 spec. (2.5 Gbps and 5.0 Gbps)
  • Supports SATA 6.0G, 3.0G and 1.5G Hard Disks
  • Fully compliant with Serial ATA Revision 3.0 specification
  • Supports PCI-e communication
  • S.M.A.R.T application support for third party Macintosh utilities
  • Supports Apple Disk Utility RAID and JBOD hard disk configurations
  • PM support: Connect up to 10 drives using SeriTek/5PM enclosures
  • Direct connect support: Connect up to 4 drives using miniSwap/ES
  • Complete CRC error checking, for all bits transmitted (command, data, and status), offers enhanced data protection for high-speed Serial ATA drives
  • Four independent data channels allow for separate device timing
  • Bus Mastering off-loads data I/O handling from CPU
  • Automatically identifies and configures drive types
  • Low power consumption and aggressive power management
  • Supports Native Command Queuing (NCQ)
Onboard Flash ROM
  • Allows easy upgrades to the latest firmware
Cables Supported and
Optional Accessories
  • 7-pin shielded SATA cable, up to 2 meters in length
  • Mounting SeriTek/6G2+2 in ThunderTek/PX requires optional mounting posts
Warranty
  • One year limited parts & labor
Physical Dimensions
  • 160mm"(L) x 7mm(W) x 110mm(H) (not including bracket or optional internal 2.5" SSD/HDD)
Power Requirements
  • 5V
Environmental
  • Temperature: +5C to +55C (Operating), -25C to +70C (Non-Operating)
  • Relative humidity: 20% to 80% (Operating), 15% to 90% (Non-Operating)
EMC Compliance
  • EN55022/1998, EN55024/1998 (European Community)
  • FCC Part 15 Class B (US)
